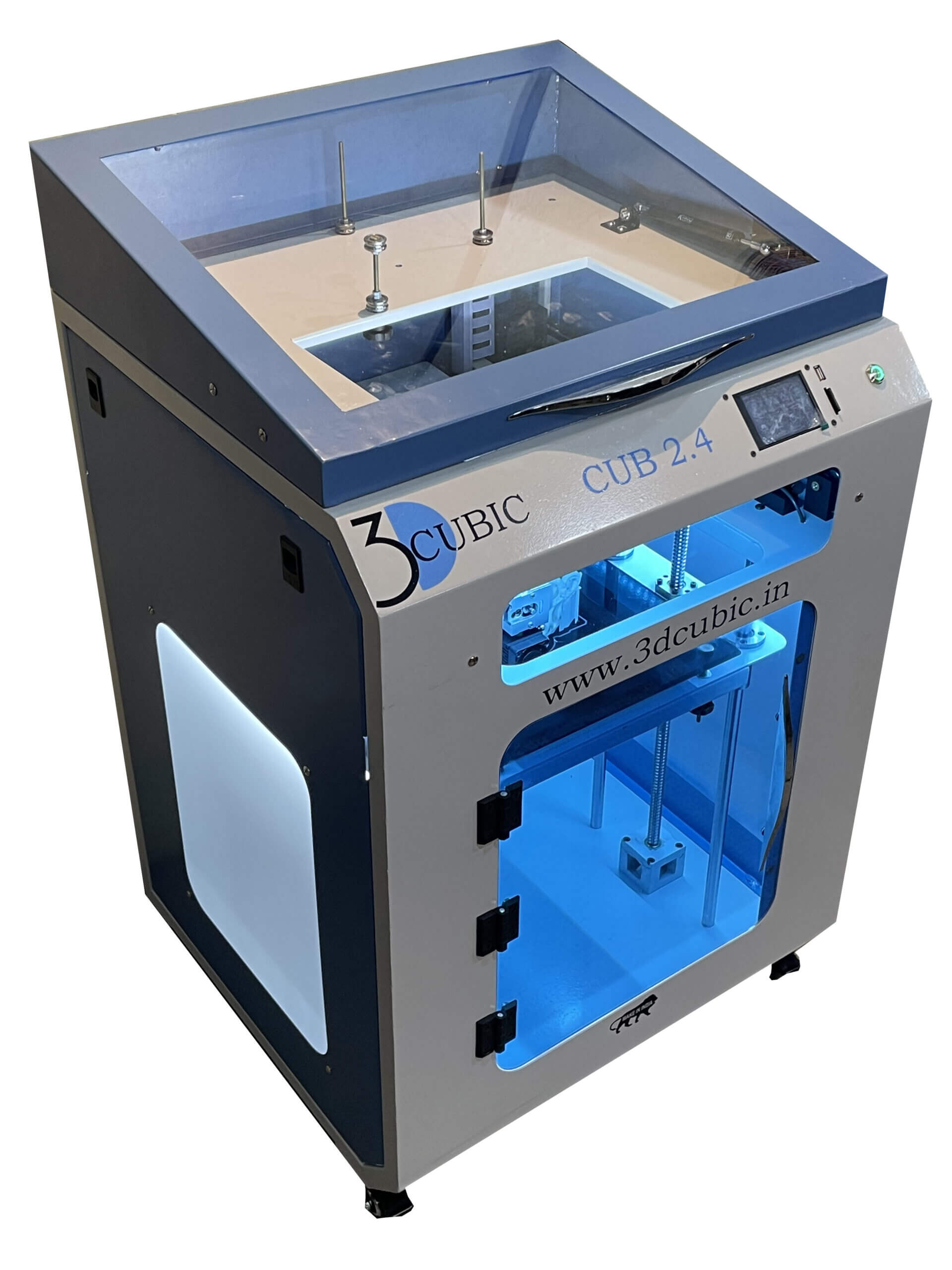

INDUSTRIAL FDM/FFM 3DPRINTER
- BUILD SIZE
- 250mm X 250mm X 400mm
- NOZZLE DIAMETER
- 0.4mm – 1.0mm (Optional)
- EXTRUDER
- High Torque Direct Drive Single (Upgradable to Duel)
- PRINTING SPEED
- 200mm/s as per material
- EXTUDER TEMPERATURE
- 30-300 degree (upgradable)
- BED TEMPERATURE
- 30-150 degree
- DIMENSIONS
- 610 X 610 X 990 mm
- ACCURACY (Z LAYER HEIGHT)
- 80-600 Micron (Depends Nozzle)
- CONNECTIVITY
- USB, U-disk, SD Card, Wi-fi
- WEIGHT
- 72 kg
- INPUT
- 220V-4A-50Hz
- MATERIAL COMPATIBILITY
- (Diameter-1.75mm) PLA+, ABS, PETG, HIPS, PVA, CARBON FIBER-COMPOSITE, PC, PP, TPU 90 SHORE, WOODEN FILL
Difference Our 3d Printer
- XY AXIS – THK Linear Rail-Guide for Better Layer Resolution
- Z AXIS – HIWIN Ball Screw For 80 Micron Resolution
- Auto Bed Levelling
- Resume Capacity on Power Failure & Filament Sensor
- Touch Screen Display
- On Board RESET Switch for Emergency Stop
- Power Coated Robust Structure with Internal LED
- Support Windows (7/8/10/11) Mac OS
- Installation & Training + Troubleshooting with on Site 1 Year Warranty
- 3D Printer Accessories (Free of Cost)
| Build Volume | 250mm x 250mm x 400 mm |
| Layer Resolution Height | 100 Microns to 400 Microns (set before printing in software 0.50 To 800 Micron) |
| Compatible Material for printing | Model material : Engineering grade Thermoplastic – PETG, ABS, HIPS, PLA,PVA Special material, Carbon Fiber, Flexible Filaments Etc (Flexible,Wood, P.C, Nylon, Ceramic, Marble, Etc) |
| Positioning Precision XY – Axes | 11 microns |
| Positioning Precision Z – Axis | 10 microns |
| Printing Speed | 200mm/s as per Material |
| Filament Diameter | 1.75 mm |
| Nozzle Diameter | 0.4 mm – 1.0mm (Optional) |
| Height | 610mm |
| Width | 610mm |
| Depth | 990mm |
| Machine Weight | 72Kg |
| Shipping Box | 20 Kg |
| Ambient Operating Temperature | 10° – 50° C |
| File Types | .stl, Gcode |
| Support | Windows (XP/7/8/8.1 10/11 ), Mac OS X (10.7/10.8) |
| AC Input | 110– 220 V, ~6 amps,– 50 Hz |
| Power Requirements | 25 VDC @ 15 amps |
| Connectivity | USB, SD card, Wi-Fi , U-Disk |
3d Printer Free Accessories
- USB Cable For Printer
- Memory Card
- Power Cable
- Spool Holder
- Filament Dust Filter
- 1 kg Filament
- Tool Kit etc.
Shipping
- Order Dispatched in LESS 24 Hours , Assuring Highly secure packing
- Delivered within 2-5 Business days usually after dispatched via Fedex
- 1Kg Filament Free
Service / Customer Support / Technical support
We provide after sale support. Contact us via “Ask seller a question”
For urgent inquiry :+91 95370 02444
